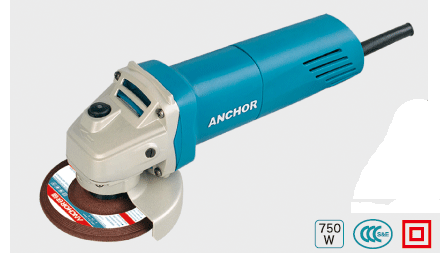

Product Name:Angle Grinder
Model
S1M-TM07-100
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Max.Wheel Diameter(mm)
Φ100
Hole Diameter of Wheel(mm)
Φ16
Rated Power Input(W)
750
Rated Speed(r/min)
10000
Net.Weight (kg)
1.7
Order No
A7
Mill-cut quickly
Performance characteristics

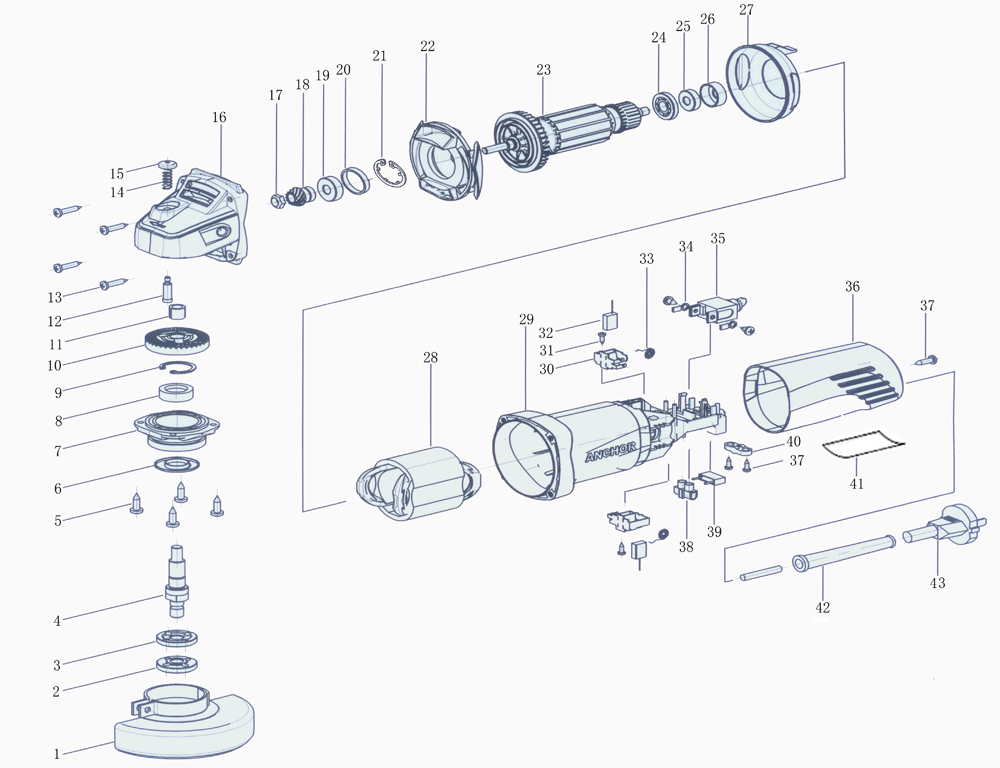

1    partno:311210025    Wheel Guard    12    partno:323710023    Clamp Nut    13    partno:323810026    Disc Flange    14    partno:320210061    Output Shaft    15    partno:234110008    Screw M4*12    46    partno:310410001    Metal Dust Protector    17    partno:530310135    Gear Case Cover    18    partno:250110020    Bearing 6201-DDW    19    partno:240710005    Circlip for Hole 32    110    partno:320110078    Gear    111    partno:250210023    Needle Bearing HK0810    112    partno:320710009    Lock Pin    113    partno:234110019    Screw ST4*24    114    partno:340510022    Spring for lock pin 8.8*13*0.7*5    115    partno:522410006    Pin Cap    116    partno:532410114    Gear Case    117    partno:221410008    Nut M6    118    partno:320110125    Bevel Pinion    119    partno:250110010    Bearing 608-2RS    120    partno:141610005    Seal Ring 25*22*4    121    partno:240710004    Circlip for hole 27    122    partno:524810002    Blinker    123    partno:510210372    Armature    124    partno:521610024    Insulation ring    125    partno:250110098    Bearing 607-2Z    126    partno:140810006    Bearing Seat    127    partno:520310020    Winding-proof Ring    128    partno:510110139    Stator    129    partno:520110436    Housing    130    partno:430210036    Brush holder    131    partno:234610002    Tapping Screw ST3*10    232    partno:430110019    Carbon Brush    133    partno:340420015    Coil Spring 2.6*0.3*5    134    partno:450110004    Terminal(Blue)    235    partno:410110053    Switch    136    partno:522710040    Rear Housing    137    partno:234110015    Screw ST4*16    338    partno:450610001    Single-row connector    139    partno:440210002    Capacity 0.33uF-2TH    140    partno:522010010    Strain Relief    141    partno:621911824    Nameplate    142    partno:140310001    Power Cable Jacket    143    partno:420110093    Power Cable 2*0.75*2.7YZW    144    partno:311910001    Wrench    1
