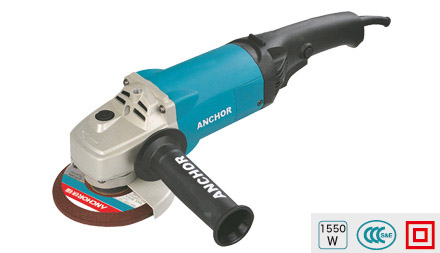

Product Name：Angle Grinder
 | Model S1M-TM01-150 Rated Voltage(V～) 220v Rated Frequency(Hz) 50Hz Max.Wheel Diameter(mm) Φ150 Hole Diameter of Wheel(mm) Φ22 Rated Power Input(W) 1550 Rated Speed(r/min) 9000 Net.Weight (kg) 3.3 Order No A10 Mill-cut quickly  |
Performance characteristics
1 partno：323710022 Clamp Nut 12 partno：323810025 Disc Flange 13 partno：311210028 Wheel Guard 14 partno：233810013 Screw M5*14 45 partno：530310163 Gear Case 16 partno：142310002 Seal Paper Pad 17 partno：121110008 Wool Pad22*14*4 18 partno：320210072 Output Shaft 19 partno：240510003 Semi-circle key 3*13 110 partno：250110021 Bearing 6202-DDW 111 partno：311510011 Cover (3 holes 47*28*2.5) 112 partno：233810014 Screw M4*10 613 partno：320110057 Gear 114 partno：250210019 Needle Bearing HK1210 115 partno：520810011 Accesary Handle 116 partno：234110021 Screw ST5*24 817 partno：522410009 Pin Cap 118 partno：340510018 Spring for lock pin 10*14*0.8*5 119 partno：532410118 Gear Case 120 partno：221410002 Nut M8 121 partno：320110102 Bevel Pinion 122 partno：141610009 Shockproof Pillar 27*24*3.5 123 partno：312110001 Gear Pad 124 partno：240110015 Washer 30*24.5*0.4 125 partno：250110019 Bearing 6200-DDW 126 partno：140110036 Seal Ring 33*30*4 127 partno：121110009 Wool Pad 27*20*4 128 partno：311510045 Cover 129 partno：510210336 Armature 130 partno：520310025 Blinker 131 partno：320710029 Lock Pin 132 partno：510110115 Stator 133 partno：234110031 Screw ST4*20 234 partno：521610009 Insulation Ring 135 partno：250110125 Bearing 608-2Z 136 partno：140810014 Bearing Seat 137 partno：520110454 Housing 138 partno：234110033 Screw ST3*10 439 partno：521910014 Brush Cover 140 partno：430110012 Carbon Brush 141 partno：430210029 Brush holder 142 partno：340420010 Coil Spring 4*0.3*4 143 partno：621911825 Nameplate 144 partno：520210007 Handle 145 partno：440210001 Capacity 0.22uF-2TH 146 partno：410110057 Switch 147 partno：234710004 Screw with washer ST4*18 248 partno：233610016 Screw with washer ST4*16 249 partno：522010011 Strain Relief (Plastic) 150 partno：140310002 Power Cable Jacket 151 partno：420110068 Power Cable 2*1*2.7YZW 152 partno：311910010 Wrench 1
