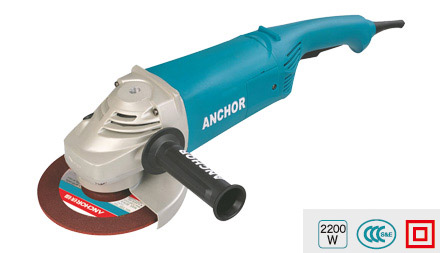

Product Name：Angle Grinder
 | Model S1M-TM01-180 Rated Voltage(V～) 220v Rated Frequency(Hz) 50Hz Max.Wheel Diameter(mm) Φ180 Hole Diameter of Wheel(mm) Φ22 Rated Power Input(W) 2200 Rated Speed(r/min) 8500 Net.Weight (kg) 6.2 Order No A11 Mill-cut quickly  |
Performance characteristics

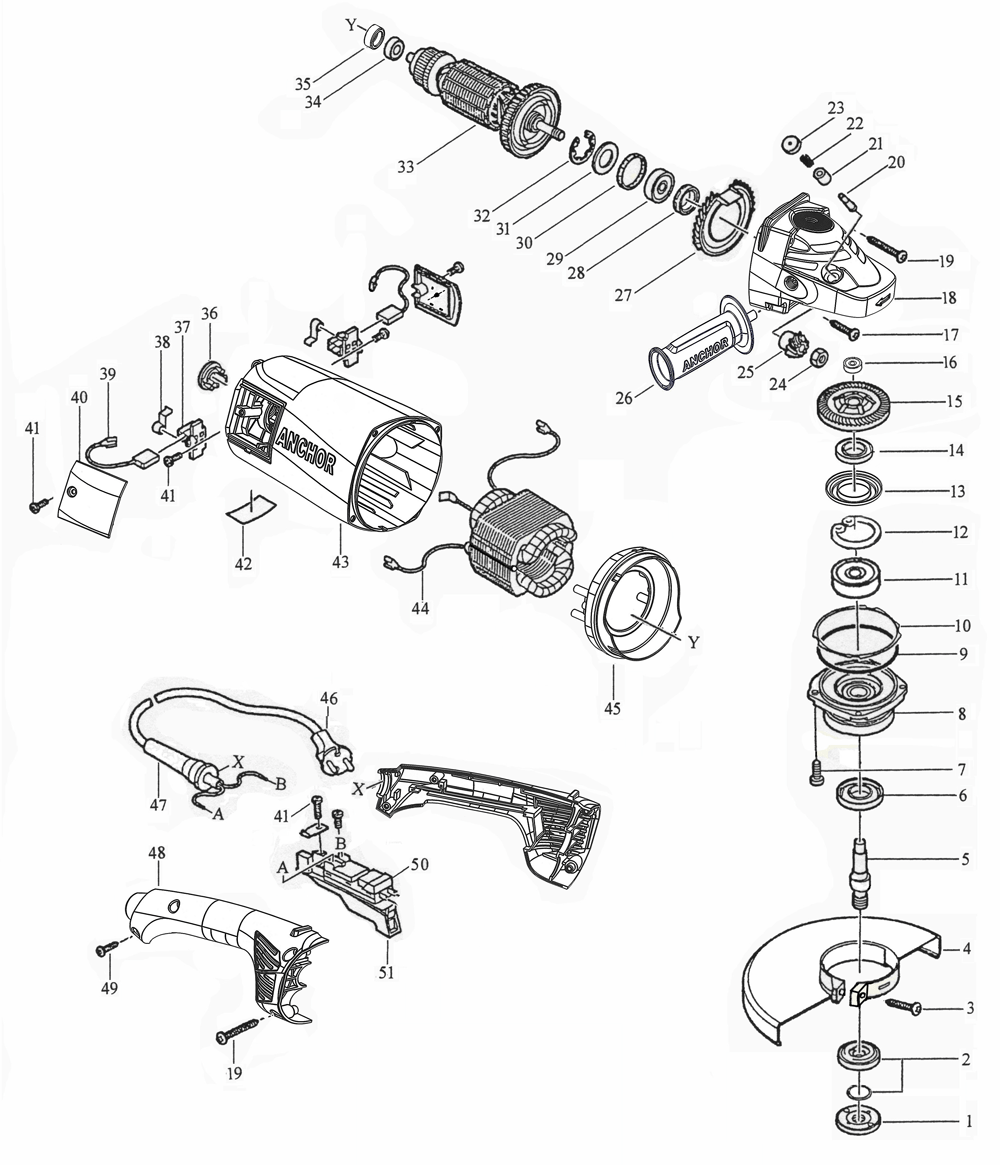

1 partno：323710022 Clamp Nut 12 partno：323810007 Disc Flange (including O ring) 13 partno：235410001 Screw M8*20 14 partno：311210026 Wheel Guard 15 partno：320210067 Output Shaft 16 partno：521210001 dustproof Cover 17 partno：236810001 Seal Paper Pad 48 partno：530310164 Gear Case Cover 19 partno：140110034 O Ring 72*1.8 110 partno：241510001 Adjust Pad 111 partno：250110022 Bearing 6203-DDW 112 partno：240710007 Circlip for hole 40 113 partno：312210001 Seal Frame 114 partno：121110015 Wool Pad 37*27*8 115 partno：320110049 Gear 116 partno：250110046 Bearing 609-2Z 117 partno：236710003 Tapping Screw ST5*35 218 partno：532410119 Gear Case 119 partno：236710004 Tapping Screw ST5*54 420 partno：320710008 Retention Pin 121 partno：320810003 Retention Pin Cap 122 partno：340510021 Spring for retention Pin 9.5*16*0.7*7 123 partno：522410012 Pin Cap 124 partno：221410007 Nut M10 125 partno：320110104 Bevel Pinion 126 partno：520820017 Auxiliary Handle 127 partno：524610003 Wind Guider 128 partno：310510001 Oil Seal 129 partno：250110092 Bearing 6300-2RS 130 partno：141610004 Seal Ring 39*35*7.5 131 partno：240110022 Washer 38*23*1.8 132 partno：240710011 Circlip for hole 133 partno：510210340 Armature 134 partno：250110010 Bearing 608-2RS 135 partno：140810004 Bearing Seat 136 partno：525410001 Fixer 137 partno：430210003 Brush holder 138 partno：340420011 Coil Spring 139 partno：430120011 Carbon Brush 140 partno：521910015 Brush Cover 141 partno：236710001 Tapping Screw ST4*12 542 partno：621911827 Nameplate 143 partno：520110455 Housing 144 partno：510110119 Stator 145 partno：520310018 Windproof Ring 146 partno：420110080 Power Cable 2*1.5*2.7YCW 147 partno：140310011 Power Cable Jacket 148 partno：520210008 Handle 149 partno：236710002 Tapping Screw ST4*19 250 partno：440210001 Capacity 0.22uF-2TH 151 partno：410110056 Switch 152 partno：311910015 Wrench 1
