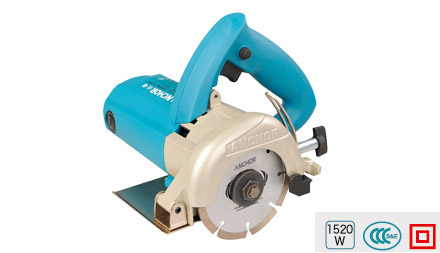

Product Name:Marble Cutter
Model
Z1E-TM02-110
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Saw blade diameter
Φ110
Max.Cutting Capacity(mm)
34
Rated Power Input(W)
1520
No-Load Speed(r/min)
13000
Net.Weight (kg)
304
Order No
M1
Mill-cut quickly
Performance characteristics

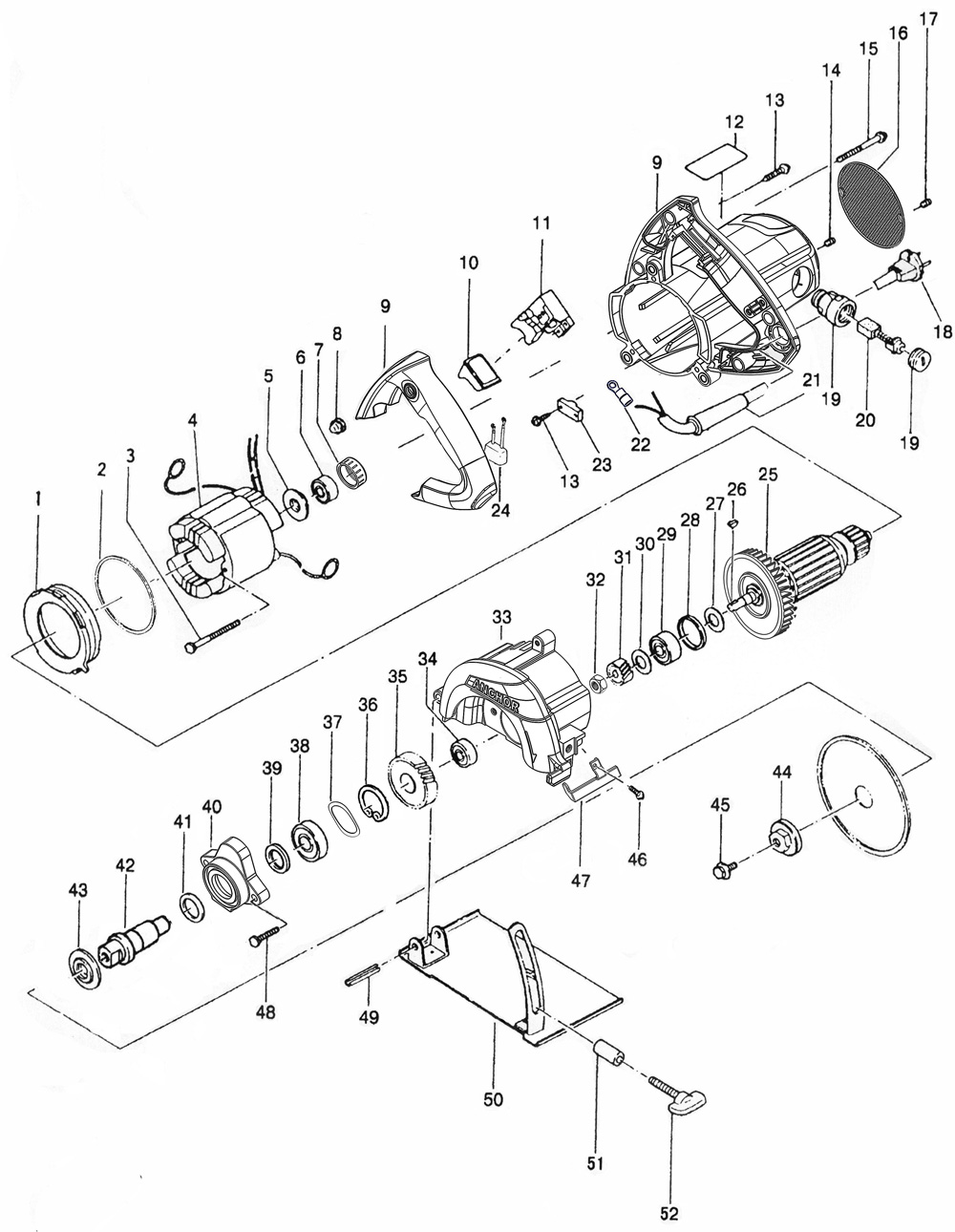

1    partno:520310031    Wind-proof Ring    12    partno:140110034    O Ring 72*1.8    13    partno:234110047    Screw ST5*70    24    partno:510110113    Stator    15    partno:521610026    Insulation Ring    16    partno:250110125    Bearing 608-2Z    17    partno:140810014    Bearing Seat    18    partno:141710001    Lock Cap    19    partno:520110451    House(including Handle Cover)    110    partno:141310004    Switch Cover    111    partno:410110050    Switch    112    partno:621911845    Nameplate    113    partno:233610016    Screw with washer ST4*16    614    partno:231710001    Set Screw M5*8    215    partno:234510029    Screw M5*30    316    partno:317610001    Dust Cover    117    partno:234110067    Screw M5*12    218    partno:420110068    Power Cable 2*1*2.7YZW    119    partno:430210017    Brush Holder(including Brush Cover)    120    partno:430120020    Carbon Brush    121    partno:140310002    Power Cable Jacket    122    partno:450110004    Terminal(Blue)    423    partno:522010011    Strain Relief (Plastic)    124    partno:440210002    Capacity 0.33uF-2TH    125    partno:510210333    Armature    126    partno:240510001    Woodruff Key 2.5*10    127    partno:240110051    Flat Washer 21.5*9*0.5    128    partno:141610006    Seal Ring 26*29.5*3    129    partno:250110012    Bearing 629-2RS    130    partno:242010002    Grease Proofing Ring 22*8.5*2    131    partno:320110108    Small Gear    132    partno:221410013    Nut M7    133    partno:530110128    Gear Box    134    partno:250110044    Bearing 606-2Z    135    partno:320110063    Big Gear    136    partno:240710005    Circlip for Hole 32    137    partno:240210005    Spring Washer    138    partno:250110016    Bearing 6002-DDW    139    partno:140510001    Skeleton Oil Seal 20*26*3    140    partno:530310139    Bearing Sleeve    141    partno:320610021    Distance Ring 0*15*6.5    142    partno:320210070    Output Shaft    143    partno:323810028    Clamp Flange    144    partno:323710013    Clamp Nut    145    partno:232010001    Screw with Washer M7*15(left Screw)    146    partno:234110008    Screw M4*12    147    partno:525710001    Baffle    148    partno:231610002    Combination Screw M5*15    149    partno:241010006    Cotter Pin 6    150    partno:311710006    Base Plate    151    partno:320610010    Distance Ring 12*6.2*25    152    partno:235710003    Wing Screw    153    partno:311910019    Socket Wrench    154    partno:630510003    Water Connector    155    partno:630510004    Water Nozzle    1
