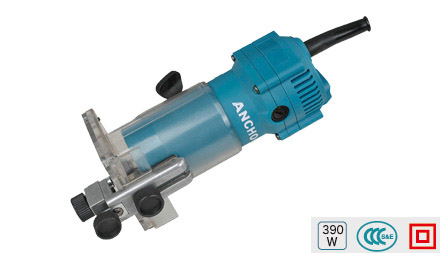

Product Name：Trimmer
 | Model M1P-TM01-6 Rated Voltage(V～) 220v
Rated Frequency(Hz) 50Hz
Rated Power Input(W) 390
Rated Speed(r/min) 30000
Max.Milling Cutter Diameter(mm) 6.35
Net.Weight (kg) 1.8 Order No T1 Order No T1 Mill-cut quickly  |
Performance characteristics

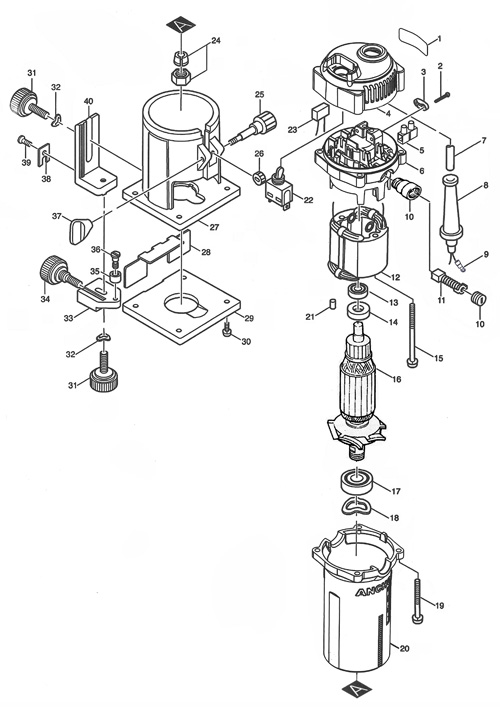

1 partno：621911835 NamePlate 12 partno：234610003 Tapping Screw ST4*16 23 partno：522010010 Strain Relief 14 partno：525210001 Rear Housing 15 partno：450610001 Single-row connector 16 partno：522810006 Middle Housing 17 partno：420110067 Power Cable 2*0.75*2.7YZW 18 partno：140310002 Power Cable Jacket 19 partno：450110004 Terminal(Blue) 210 partno：430220004 Brush Holder (including Brush Cover) 111 partno：430120008 Carbon Brush 112 partno：510110123 Stator 113 partno：250110011 Bearing 627-2Z 114 partno：521610023 Insulation Ring 115 partno：234110010 Screw ST4*68 216 partno：510210337 Armature 117 partno：250110106 Bearing 6002-VV 118 partno：241410002 Wave Washer (big) 119 partno：234110046 Screw ST4*35 420 partno：520110447 Housing 121 partno：140210008 Shockproof column 4*7 122 partno：410110053 Switch 123 partno：440210002 Capacity 0.33uF-2TH 124 partno：323410001 Spring Chuck (including Nut) 125 partno：230610001 Long Screw M5*13 126 partno：320110001 Gear 127 partno：520510001 Transparant Cover 128 partno：520710003 Splash guard
129 partno：520610003 Baseplate 130 partno：233810001 Screw with washer M4*10 431 partno：235910001 Screw M6*23 232 partno：241410004 Wave Washer (small) 233 partno：531810014 Stand 134 partno：232410001 Screw M6*21 135 partno：320610017 Steel Range Ring 11*8.2*9 136 partno：211210001 Lock Screw M5(anticlockwise) 137 partno：142910002 Lock Cap 138 partno：315110001 Locking Plate 139 partno：233310007 Screw M4*10 140 partno：531810013 Stand 141 partno：315010001 Guide Wheel 142 partno：313210001 Template Guide Plate 143 partno：313210002 Straight Guide Plate 144 partno：221610001 Wing Nut M6 145 partno：211210005 Locking Bolt M6*16 146 partno：311910023 Open End Wrench 10 147 partno：311910024 Open End Wrench 17 1
