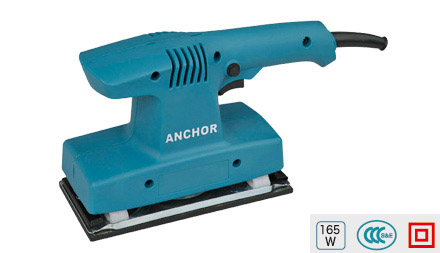

Product Name:Orbital Sander
Model
S1B-TM01-93×185
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Rated Power Input(W)
165
Orbits Frequency(…/min)
12000
Pad Size(mm)
93×185
Net.Weight (kg)
1.7
Order No
O1
Mill-cut quickly
Performance characteristics
1    partno:520110453    House    12    partno:250110048    Bearing 627-2Z    13    partno:430110018    Carbon Brush    14    partno:430220021    Brush Holder    15    partno:410110050    Switch    16    partno:141710001    Lock Cap    17    partno:141310004    Switch Cover    18    partno:233610001    Screw ST4*22    49    partno:621911847    Nameplate    110    partno:233610026    Screw with washer ST4*18    111    partno:250110021    Bearing 6202-DDW    212    partno:240610005    Circlip for Shaft 12    113    partno:510210339    Armature    114    partno:234110002    Screw ST4*14    215    partno:522010010    Strain Relief    116    partno:450110004    Terminal(Blue)    417    partno:140310002    Power Cable Jacket    118    partno:420110093    Power Cable 2*0.75*2.7YZW    119    partno:440210001    Capacity 0.22uF-2TH    120    partno:440110001    Inductance(10uH)    221    partno:510110121    Stator    122    partno:121710112    Fan    123    partno:241610001    Cone Washer 19*5.2*2    124    partno:233310003    Sunk Screw M5*10    125    partno:311710015    Base Plate    126    partno:525510001    Vibrating Grid    227    partno:315210001    Sand Paper Clip    228    partno:121110028    Wool Cushion    129    partno:233810012    Screw M4*12    4
