Product Name:Straight Grinder
Model
S1S-TM01-150
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Max.Wheel Diameter(mm)
Φ150
Hole Diameter of Wheel(mm)
Φ20
Rated Power Input(W)
1150
Rated Speed(r/min)
5000
Net.Weight (kg)
4.3
Order No
S1
Mill-cut quickly
Performance characteristics

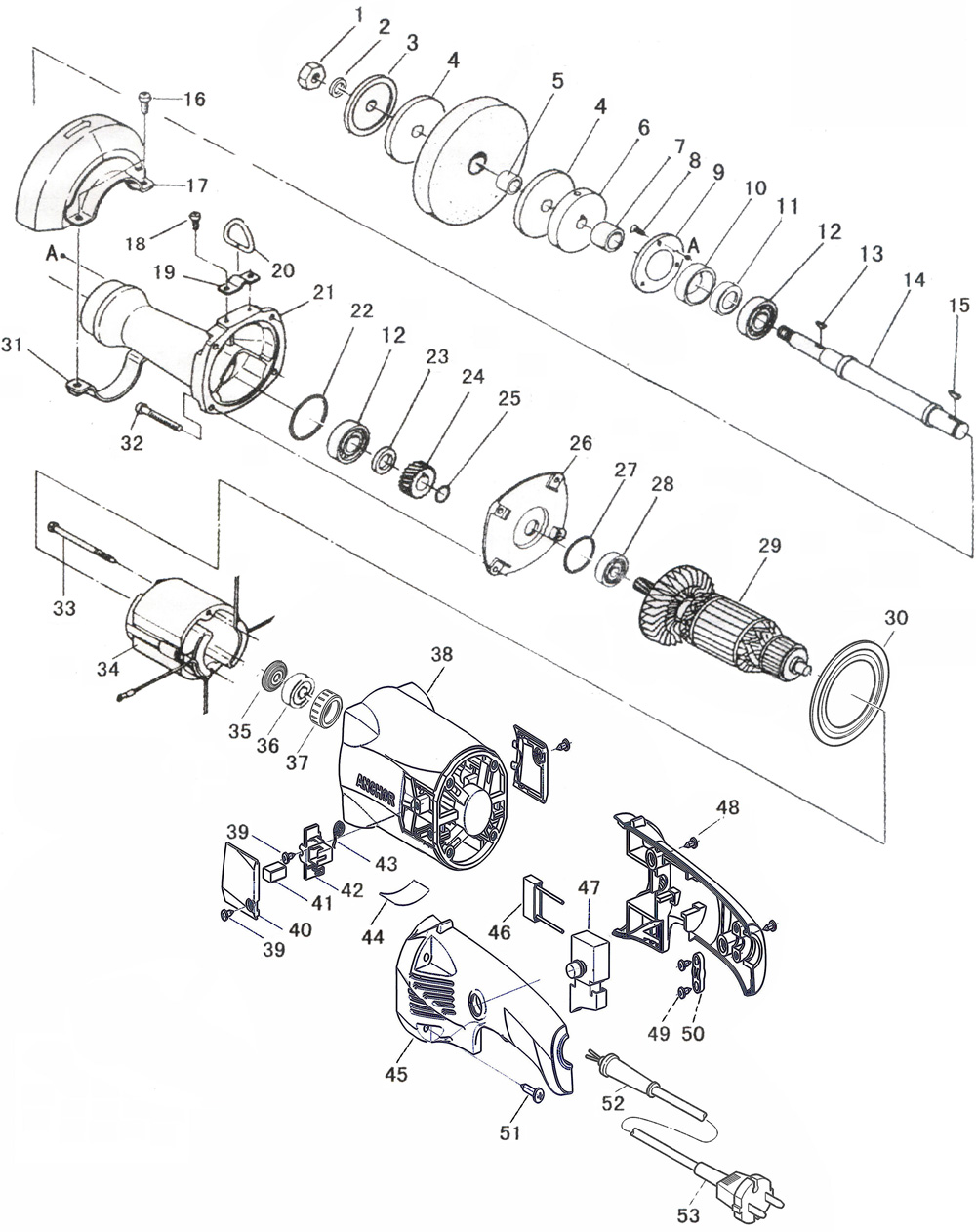

1    partno:220110002    Hex Nut M14    12    partno:240210006    Spring Washer    13    partno:323710011    Clamp Nut    14    partno:142310004    Paper Pad 62*14*2    25    partno:521010002    Distance Ring    16    partno:323810014    Clamp Flange    17    partno:321210003    Bearing Sleeve 22.9*17*16.5    18    partno:233310009    Sunk Screw M4*14    39    partno:311510036    Cover(3 holes)54*23.6*3.5    110    partno:320610013    Distance Ring 34.8*28.5*11    111    partno:121110017    Wool Pad 28.5*23*11    112    partno:250110017    Bearing 6003-DDW    213    partno:240510002    Woodruff Key    114    partno:320210033    Output Shaft    115    partno:240510004    Woodruff Key 4*13    116    partno:230110001    Screw M6*16    217    partno:311210032    Wheel Guard    118    partno:230810004    Sphere Head Screw M5*16    219    partno:311610001    Belt Seat     120    partno:313910001    Belt Buckle    121    partno:530110155    Gear Case    122    partno:140110012    O Ring 35*2    123    partno:320610008    Distance Ring 23*17*7    124    partno:320110152    Gear    125    partno:240610008    Circlip for Shaft 17    126    partno:530210085    Middle Cover    127    partno:140110023    O Ring 32*2    128    partno:250110020    Bearing 6201-DDW    129    partno:510210360    Armature    130    partno:520310025    Blinker    131    partno:311410005    Hoop    132    partno:234110029    Screw ST5*45    433    partno:234110031    Screw ST4*20    234    partno:510110141    Stator    135    partno:521610026    Insulation Ring    136    partno:250110125    Bearing 608-2Z    137    partno:140810014    Bearing Seat    138    partno:520110454    Housing    139    partno:234110033    Screw ST3*10    440    partno:521910014    Brush Cover    141    partno:430110012    Carbon Brush    142    partno:430210029    Brush holder    143    partno:340420010    Coil Spring 4*0.3*4    144    partno:621911830    Nameplate    145    partno:520210007    Handle    146    partno:440210002    Capacity 0.33uF-2TH    147    partno:410110057    Switch    148    partno:234710004    Screw with washer ST4*18    249    partno:233610016    Screw with washer ST4*16    250    partno:522010011    Strain Relief (Plastic)    151    partno:233610025    Screw with Washer ST5*24    452    partno:140310002    Power Cable Jacket    153    partno:420110078    Power Cable 2*1*2.7YZW    1
