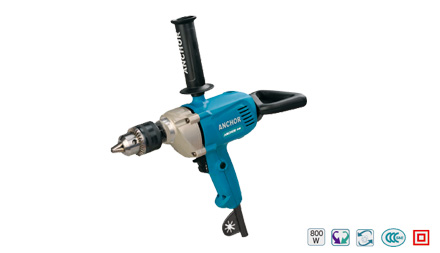

Product Name：Electric Drill
 | Model J1Z-TM01-16A Rated Voltage(V～) 220v
Rated Frequency(Hz) 50Hz
Rated Power Input(W) 800
No-Load Speed(r/min) 800
Max.Drilling Capacity Steel(mm)Φ16Wood(mm)Φ36
Net.Weight (kg) 3.2 Order No E9 Mill-cut quickly  |
Performance characteristics
1 partno：235910002 Screw M5*18 (left screw) 12 partno：320510011 Chuck 13 partno：320210068 Output Shaft 14 partno：250110111 Bearing 6001-2RS 15 partno：240610005 Circlip for Shaft 12 16 partno：320110135 Gear 17 partno：330110003 Oil-Impregnated Copper Sleeve 18 partno：140110039 O ring 10*12 19 partno：250110066 Bearing 626-2Z 210 partno：510210350 Armature 111 partno：510110143 Stator 112 partno：241810001 Lock Pin 113 partno：520110478 Housing 114 partno：234610001 Spring for lock pin 8.8*13*0.7*5 715 partno：621911843 Nameplate 116 partno：316410001 Hook 117 partno：430210013 Brush holder 118 partno：430120028 Carbon Brush 119 partno：410110073 Switch (Without Speed Regulation ) 120 partno：450210018 Terminal 221 partno：440110004 Inductance (8uH) 221 partno：440210003 Capacity 0.22uF (small) 123 partno：234110015 Screw ST4*16 224 partno：522010012 Strain Relief (Plastic) 125 partno：140310005 Power Cable Jacket 126 partno：420110093 Power Cable 2*0.75*2.7YZW 1
