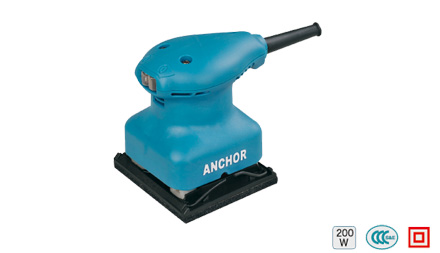

Product Name:Orbital Sander
Model
S1B-TM02-110×100
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Rated Power Input(W)
200
Orbits Frequency(…/min)
13500
Pad Size(mm)
110x100
Net.Weight (kg)
1.3
Order No
O2
Mill-cut quickly
Performance characteristics

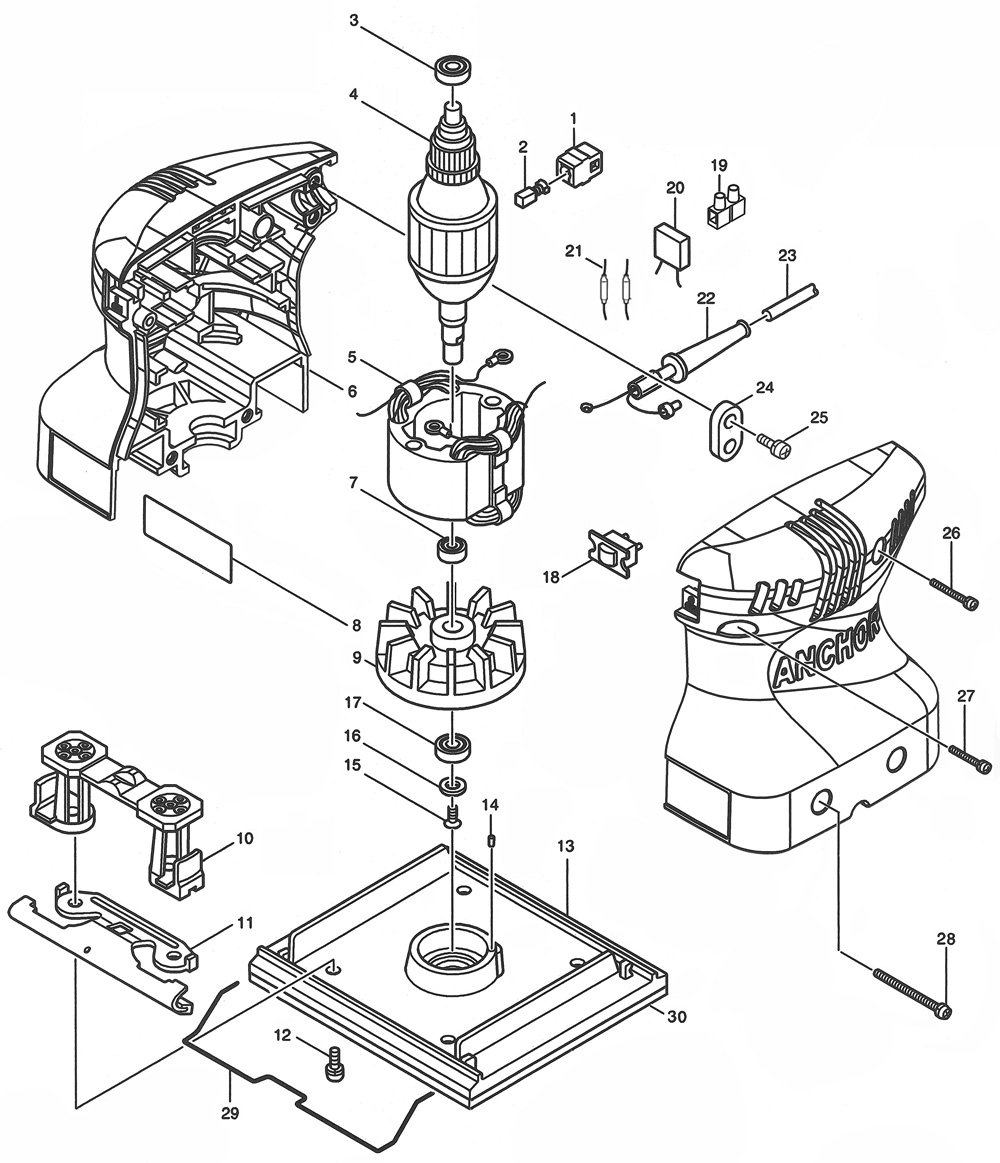

1    partno:430220021    Brush Holder    12    partno:430110018    Carbon Brush    13    partno:250110048    Bearing 627-2Z    14    partno:510210335    Armature    15    partno:510110127    Stator    16    partno:520110452    House    17    partno:250110012    Bearing 629-2RS    18    partno:621911848    Nameplate    19    partno:121710111    Zinc Alloy Fan    110    partno:525510001    Vibrating Grid    211    partno:315210001    Sand Paper Clip    212    partno:234510023    Screw M4*14    413    partno:520610002    Base Plate    114    partno:140210008    Shockproof column 4*7    115    partno:233310004    Screw M4*10    116    partno:241610002    Cone Washer 13*4.2*2    117    partno:250110019    Bearing 6200-DDW    118    partno:410110008    Switch    119    partno:450610002    Dual-row connector (small)    120    partno:440210003    Capacity 0.22uF (small)    121    partno:440110004    Inductance (8uH)    222    partno:140310002    Power Cable Jacket    123    partno:420110093    Power Cable 2*0.75*2.7YZW    124    partno:522010012    Strain Relief (Plastic)    125    partno:233610016    Screw with washer ST4*16    226    partno:234110046    Screw ST4*35    127    partno:234110017    Screw ST4*25    128    partno:234110026    Screw ST4*52    229    partno:316910001    Steel Wire Clip    230    partno:121110029    Wool Cushion    1
