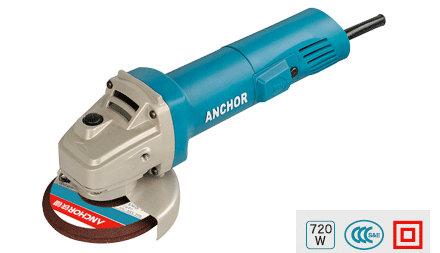

Product Name:Angle Grinder
Model
S1M-TM03-100
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Max.Wheel Diameter(mm)
Φ100
Hole Diameter of Wheel(mm)
Φ16
Rated Power Input(W)
720
Rated Speed(r/min)
11000
Net.Weight (kg)
1.6
Order No
A3
Mill-cut quickly
Performance characteristics

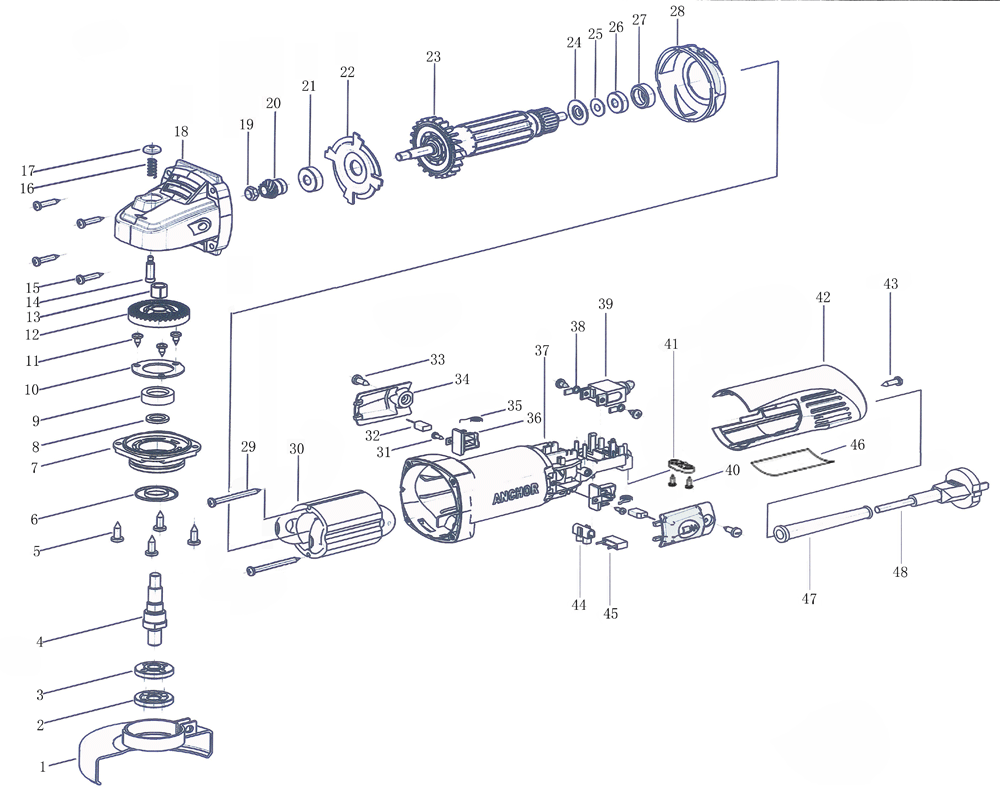

1    partno:311210025    Wheel Guard    11    partno:140310001    Power Cable Jacket    12    partno:323710023    Clamp Nut    13    partno:323810024    Disc Flange    14    partno:320210059    Output Shaft    15    partno:233810003    Screw with washer M4*12    46    partno:310410001    Metal Dust Protector    17    partno:530310138    Gear Case Cover    18    partno:121110030    Wool Pad 25*17*3    19    partno:250110089    Bearing 62001-2RS    110    partno:311510009    Cover Plate 40.3*24*1.5    111    partno:233810001    Screw with washer M4*10    312    partno:320110147    Gear    113    partno:250210023    Needle Bearing HK0810    114    partno:320710028    Lock Pin    115    partno:234110019    Screw ST4*24    416    partno:340510022    Spring for lock pin 8.8*13*0.7*5    117    partno:522410008    Pin Cap    118    partno:532410117    Gear Housing    119    partno:221410013    Nut M7    120    partno:320110146    Bevel Pinion    121    partno:250110010    Bearing 608-2RS    122    partno:314810003    Blinker    123    partno:510210317    Armature    124    partno:521610019    Insulation ring    125    partno:240110004    Metal Plate 14*7*1    126    partno:250110131    Bearing 607-2Z    127    partno:140810006    Bearing Seat    128    partno:520310045    Winding-proof Ring    129    partno:234110050    Screw ST3*65    230    partno:510110109    Stator    131    partno:234110023    Screw ST3*10    232    partno:430110026    Carbon Brush    133    partno:235410002    Screw ST4*12    234    partno:521910013    Brush Cover    135    partno:340420014    Coil Spring    136    partno:430210025    Brush Holder    137    partno:520110450    Housing    138    partno:450110004    Terminal(Blue)    239    partno:410110053    Switch    140    partno:234110033    Screw ST3*10    341    partno:522010010    Strain Relief    142    partno:522710043    Rear Housing    143    partno:234110015    Screw ST4*16    144    partno:450610001    Single-row connector    145    partno:440210001    Capacity 0.22uF-2TH    146    partno:621911820    Nameplate    148    partno:420110067    Power Cable 2*0.75*2.7YZW    149    partno:311910001    Wrench    1
