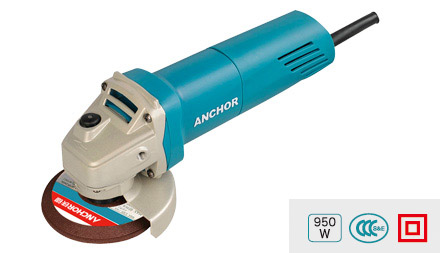

Product Name：Angle Grinder
 | Model S1M-TM04-100 Rated Voltage(V～) 220v Rated Frequency(Hz) 50Hz Max.Wheel Diameter(mm) Φ100 Hole Diameter of Wheel(mm) Φ16 Rated Power Input(W) 950 Rated Speed(r/min) 11000 Net.Weight (kg) 1.9 Order No A4 Mill-cut quickly  |
Performance characteristics

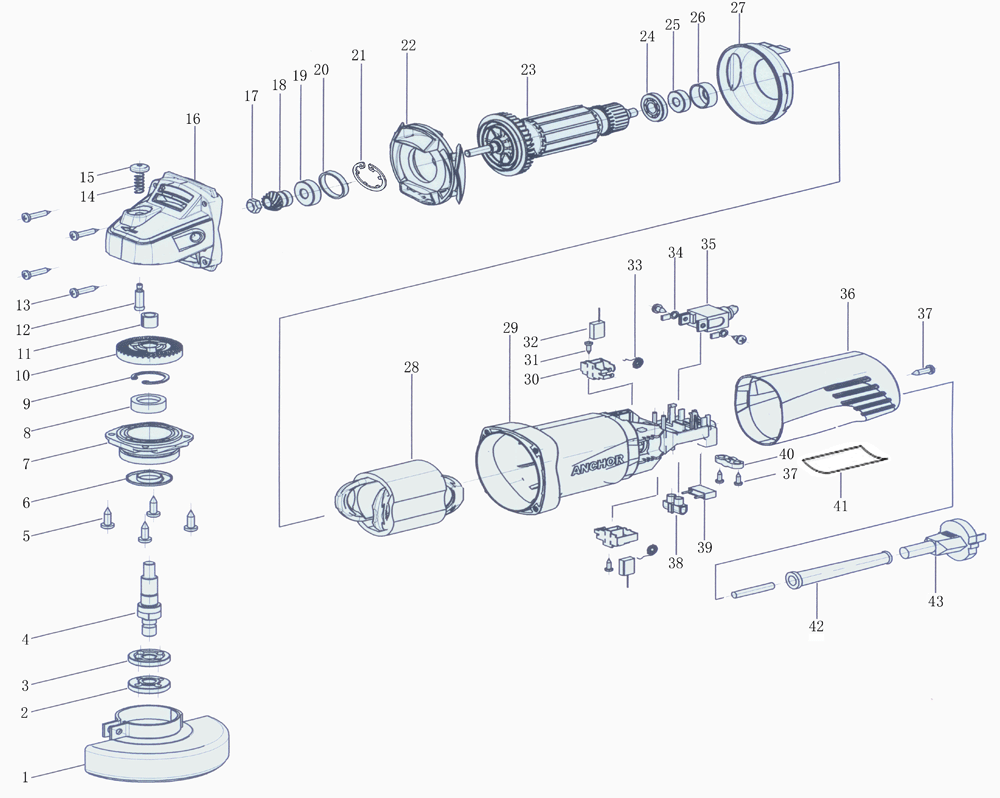

1 partno：311210025 Wheel Guard 12 partno：323710023 Clamp Nut 13 partno：323810026 Disc Flange 14 partno：320210061 Output Shaft 15 partno：234110008 Screw M4*12 46 partno：310410001 Metal Dust Protector 17 partno：530310135 Gear Case Cover 18 partno：250110020 Bearing 6201-DDW 19 partno：240710005 Circlip for Hole 32 110 partno：320110078 Gear 111 partno：250210023 Needle Bearing HK0810 112 partno：320710009 Lock Pin 113 partno：234110019 Screw ST4*24 414 partno：340510022 Spring for lock pin 8.8*13*0.7*5 115 partno：522410006 Pin Cap 116 partno：532410114 Gear Case 117 partno：221410008 Nut M6 118 partno：320110125 Bevel Pinion 119 partno：250110010 Bearing 608-2RS 120 partno：141610005 Seal Ring 25*22*4 121 partno：240710004 Circlip for hole 27 122 partno：524810002 Blinker 123 partno：510210345 Armature 124 partno：521610024 Insulation ring 125 partno：250110098 Bearing 607-2Z 126 partno：140810006 Bearing Seat 127 partno：520310020 Winding-proof Ring 128 partno：510110144 Stator 129 partno：520110436 Housing 130 partno：430210038 Brush holder 131 partno：234610002 Tapping Screw ST3*10 232 partno：430110021 Carbon Brush 133 partno：340420015 Coil Spring 2.6*0.3*5 134 partno：450110004 Terminal(Blue) 235 partno：410110053 Switch 136 partno：522710040 Rear Housing 137 partno：234110015 Screw ST4*16 338 partno：450610001 Single-row connector 139 partno：440210002 Capacity 0.33uF-2TH 140 partno：522010010 Strain Relief 141 partno：621911821 Nameplate 142 partno：140310001 Power Cable Jacket 143 partno：420110067 Power Cable 2*0.75*2.7YZW 144 partno：311910001 Wrench 1
