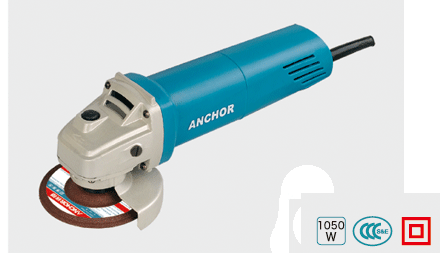

Product Name：Angle Grinder
 | Model S1M-TM05-100 Rated Voltage(V～) 220v Rated Frequency(Hz) 50Hz Max.Wheel Diameter(mm) Φ100 Hole Diameter of Wheel(mm) Φ16 Rated Power Input(W) 1050 Rated Speed(r/min) 12000 Net.Weight (kg) 2.2 Order No A5 Mill-cut quickly  |
Performance characteristics

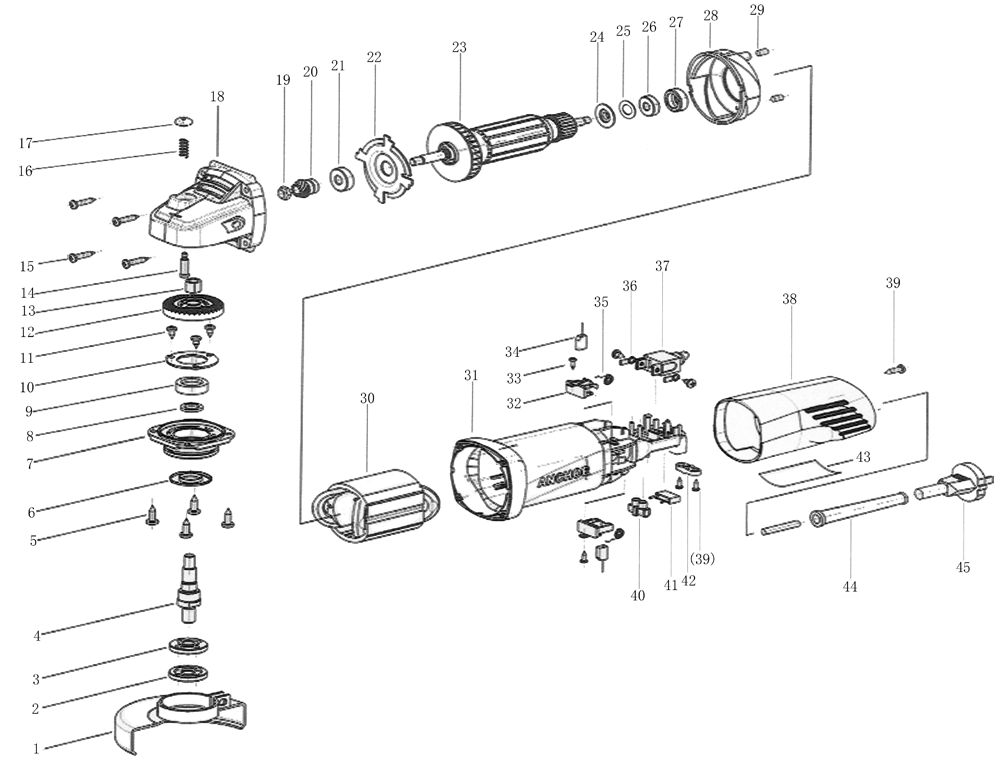

1 partno：311210025 Wheel Guard 12 partno：323710023 Clamp Nut 13 partno：323810024 Disc Flange 14 partno：320210059 Output Shaft 15 partno：233810003 Screw with washer M4*12 46 partno：310410001 Metal Dust Protector 17 partno：530310138 Gear Case Cover 18 partno：121110030 Wool Pad 25*17*3 19 partno：250110089 Bearing 62001-2RS 110 partno：311510009 Cover Plate 40.3*24*1.5 111 partno：233810001 Screw with washer M4*10 312 partno：320110147 Gear 113 partno：250210023 Needle Bearing HK0810 114 partno：320710028 Lock Pin 115 partno：234110019 Screw ST4*24 416 partno：340510022 Spring for lock pin 8.8*13*0.7*5 117 partno：522410008 Pin Cap 118 partno：532410117 Gear Housing 119 partno：221410013 Nut M7 120 partno：320110146 Bevel Pinion 121 partno：250110010 Bearing 608-2RS 122 partno：314810004 Blinker 123 partno：510210316 Armature 124 partno：521610006 Insulation ring 125 partno：240110004 Metal Plate 14*7*1 126 partno：250110098 Bearing 607-2Z 127 partno：140810006 Bearing Seat 128 partno：524910001 Winding-proof Ring 129 partno：140210012 Shockproof Pillar 13*4.8 230 partno：510110108 Stator 131 partno：520110445 Housing 132 partno：430210032 Brush Holder 133 partno：233610005 Screw with washer ST4*12 234 partno：430110027 Carbon Brush 135 partno：340420013 Coil Spring 136 partno：450110004 Terminal(Blue) 237 partno：410110053 Switch 138 partno：522710042 Rear Housing 139 partno：234110015 Screw ST4*16 340 partno：450610001 Single-row connector 141 partno：440210002 Capacity 0.33uF-2TH 142 partno：522010010 Strain Relief 143 partno：621911822 Nameplate 144 partno：140310001 Power Cable Jacket 145 partno：420110067 Power Cable 2*0.75*2.7YZW 146 partno：311910001 Wrench 1
