Product Name:Electric Drill
Model
J1Z-TM03-10A
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Rated Power Input(W)
450
No-Load Speed(r/min)
0-2500
Max.Drilling Capacity
Steel(mm)Φ10Wood(mm)Φ18
Net.Weight (kg)
1.5
Order No
E2
Mill-cut quickly
Performance characteristics

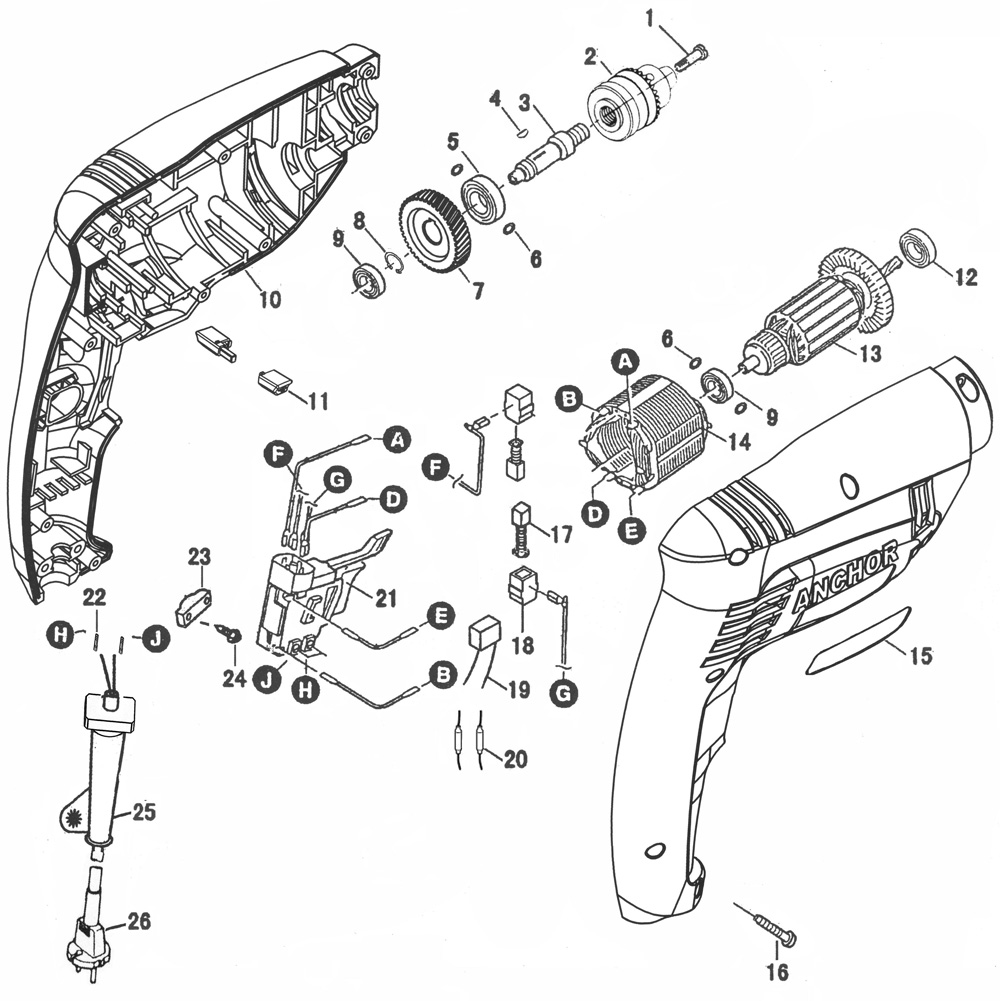

1    partno:235310002    Screw M5*20 (left screw)    12    partno:320510016    Chuck    13    partno:320210064    Output Shaft    14    partno:240510002    Woodruff Key    15    partno:250110046    Bearing 609-2Z    16    partno:140110024    O Ring 8*1.9    47    partno:320110153    Gear    18    partno:240610003    Circlip for Shaft 9    19    partno:250110066    Bearing 626-2Z    210    partno:520110444    House    111    partno:522310013    Switch Button    112    partno:250110026    Bearing 608-2RS    113    partno:510210380    Armature    114    partno:510110128    Stator    115    partno:621911839    Nameplate    116    partno:234610001    Spring for lock pin 8.8*13*0.7*5    917    partno:430110020    Carbon Brush    118    partno:430210011    Brush Holder    119    partno:440210001    Capacity 0.22uF-2TH    120    partno:440110004    Inductance (8uH)    221    partno:410110055    Switch    122    partno:450210018    Terminal    223    partno:522010010    Strain Relief    124    partno:234110033    Screw ST3*10    225    partno:140310005    Power Cable Jacket    126    partno:420110093    Power Cable 2*0.75*2.7YZW    1
