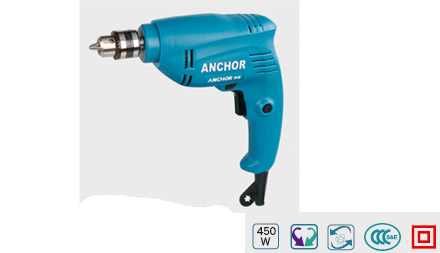

Product Name：Electric Drill
 | Model J1Z-TM02-6A Rated Voltage(V～) 220v
Rated Frequency(Hz) 50Hz
Rated Power Input(W) 450
No-Load Speed(r/min) 0-4000
Max.Drilling Capacity Steel(mm)Φ6Wood(mm)Φ6 Order No E3 Mill-cut quickly  |
Performance characteristics

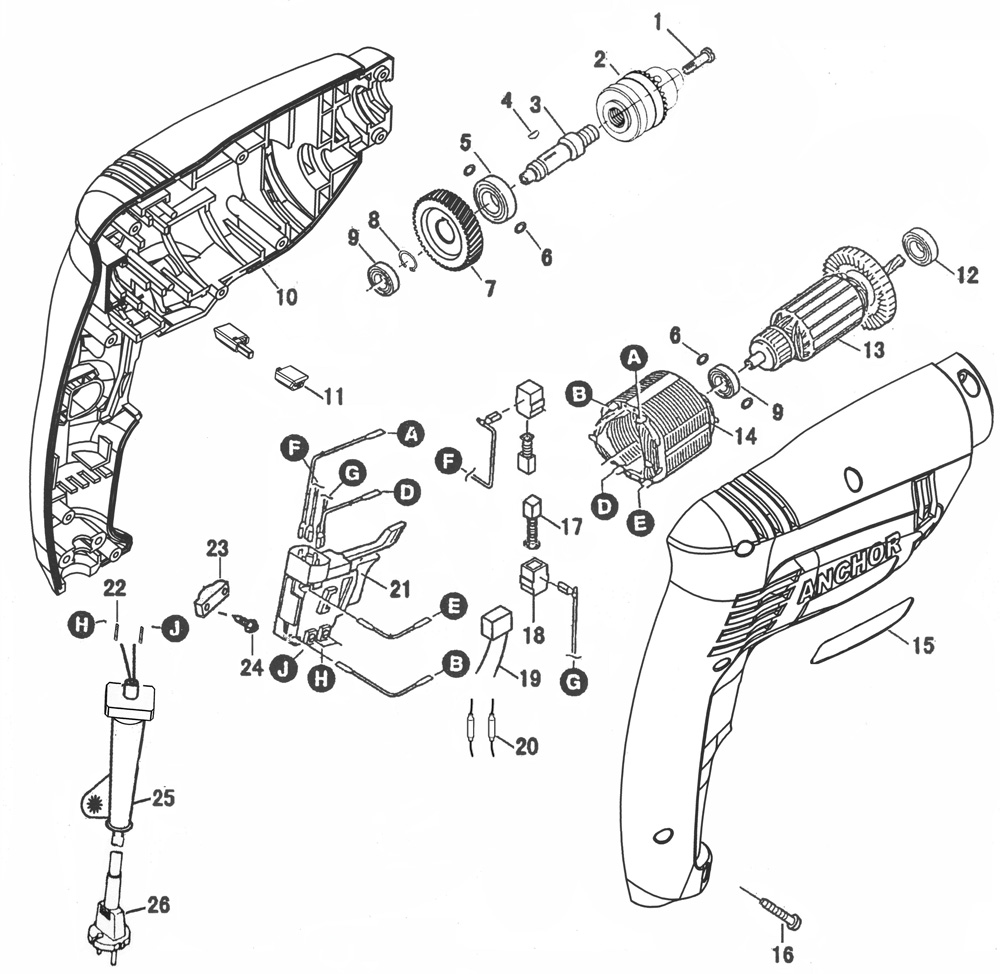

1 partno：235310002 Screw M5*20 (left screw) 12 partno：320510011 Chuck 13 partno：320210064 Output Shaft 14 partno：240510002 Woodruff Key 15 partno：250110046 Bearing 609-2Z 16 partno：140110024 O Ring 8*1.9 47 partno：320110013 Gear 18 partno：240610003 Circlip for Shaft 9 19 partno：250110066 Bearing 626-2Z 210 partno：520110444 House 111 partno：522310013 Switch Button 112 partno：250110026 Bearing 608-2RS 113 partno：510210347 Armature 114 partno：510110128 Stator 115 partno：621911840 Nameplate 116 partno：234610001 Spring for lock pin 8.8*13*0.7*5 917 partno：430110020 Carbon Brush 118 partno：430210011 Brush Holder 119 partno：440210001 Capacity 0.22uF-2TH 120 partno：440110004 Inductance (8uH) 221 partno：410110055 Switch 122 partno：450210018 Terminal 223 partno：522010010 Strain Relief 124 partno：234110033 Screw ST3*10 225 partno：140310005 Power Cable Jacket 126 partno：420110093 Power Cable 2*0.75*2.7YZW 1
