Product Name：Electric Drill
 | Model J1Z-TM01-13 Rated Voltage(V～) 220v
Rated Frequency(Hz) 50Hz
Rated Power Input(W) 500
No-Load Speed(r/min) 0-2200
Max.Drilling Capacity Steel(mm)Φ13Wood(mm)Φ20
Net.Weight (kg) 1.8 Order No E5 Mill-cut quickly  |
Performance characteristics

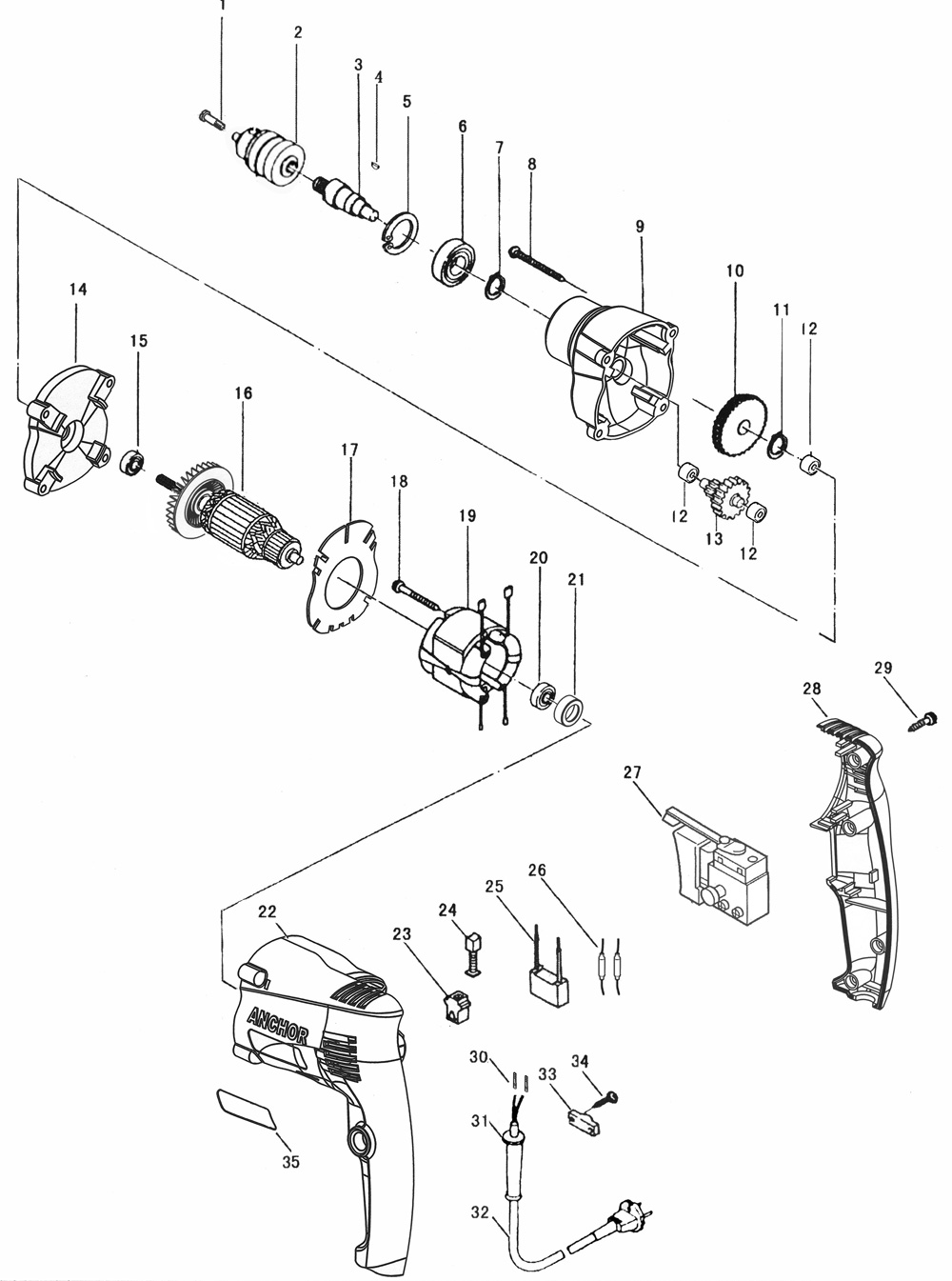

1 partno：235310002 Screw M5*20 (left screw) 12 partno：320510015 Chuck 13 partno：320210071 Output Shaft 14 partno：240510001 Woodruff Key 2.5*10 15 partno：240710005 Circlip for Hole 32 16 partno：250110030 Bearing 6201-2RS 17 partno：240610005 Circlip for Shaft 12 18 partno：234110060 Screw ST4*30 49 partno：530110126 Gear House 110 partno：320110021 Gear (Steel) 111 partno：240610004 Circlip for Shaft 10 112 partno：250110044 Bearing 606-2Z 313 partno：320110142 Gear（Change Gear） 114 partno：530210064 Middle House 115 partno：250110026 Bearing 608-2RS 116 partno：510210341 Armature 117 partno：520310044 Wind-proof Ring 118 partno：234110005 Screw ST4*45 219 partno：510110125 Stator 120 partno：250110066 Bearing 626-2Z 121 partno：140810002 Bearing Sleeve 122 partno：520110446 House 123 partno：430210030 Brush Holder 124 partno：430110018 Carbon Brush 125 partno：440210001 Capacity 0.22uF-2TH 126 partno：440110001 Inductance(10uH) 227 partno：410110062 Switch 128 partno：142810001 Handle Cover 129 partno：233610016 Screw with washer ST4*16 430 partno：450210018 Terminal 231 partno：140310007 Power Cable Jacket 132 partno：420110093 Power Cable 2*0.75*2.7YZW 133 partno：234110002 Screw ST4*14 234 partno：522010012 Strain Relief (Plastic) 135 partno：621911841 Nameplate 1
