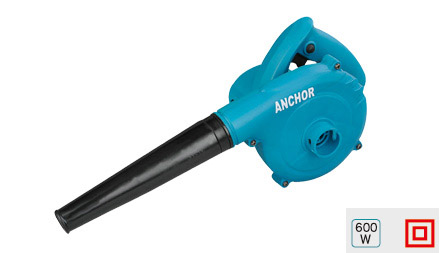

Product Name：Blower
 | Model Q1F-TM-28 Rated Voltage(V～) 220v
Rated Frequency(Hz) 50Hz
Rated Power Input(W) 600
No-Load Speed(r/min) 16000
The Maximum Gas Volume(m³/min) 2.8
Net.Weight (kg) 1.9 Order No B1 Mill-cut quickly  |
Performance characteristics

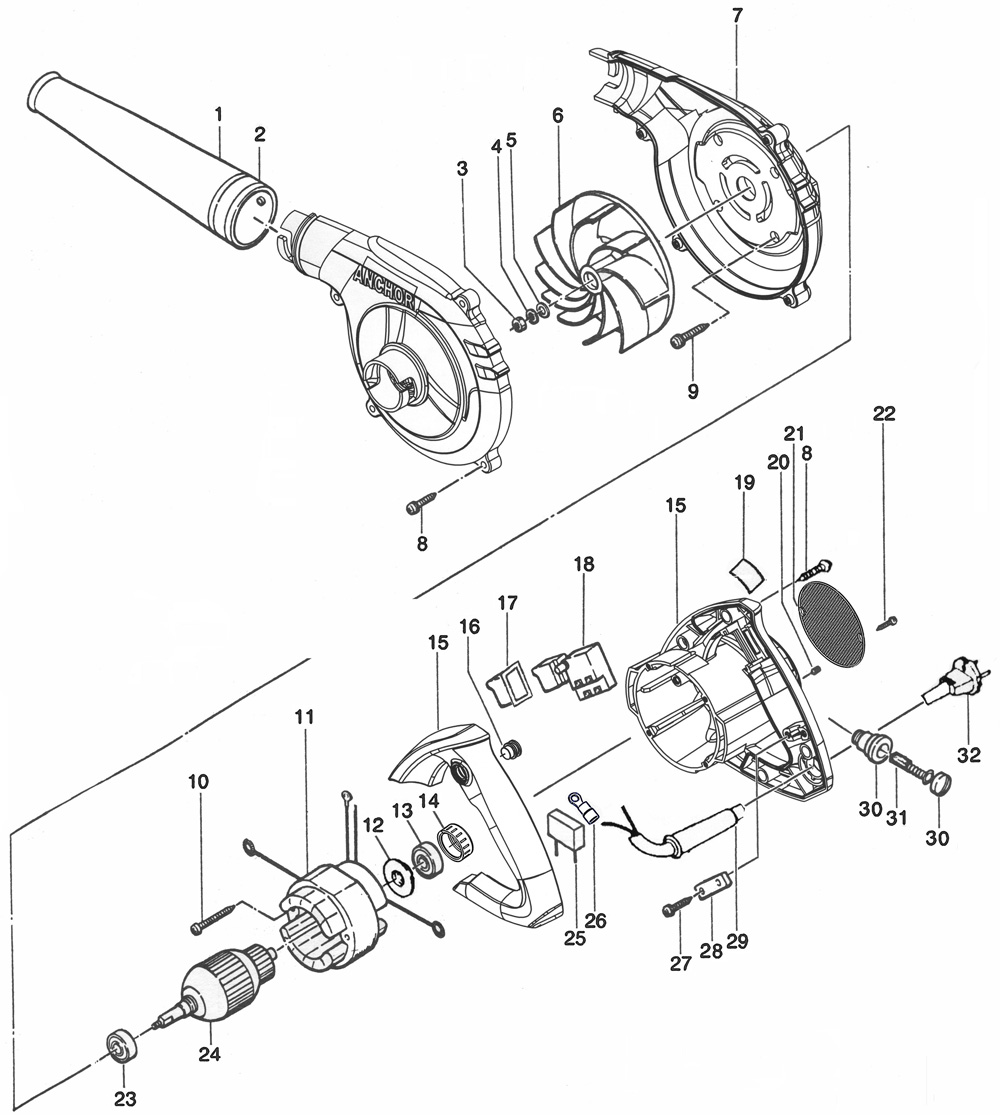

1 partno：142110001 Blow Nozzle 12 partno：524310001 Fastening Ring (Blow Nozzle) 13 partno：221410008 Nut M6 14 partno：240210003 Spring Washer M6 15 partno：240110006 Flat Washer M6 16 partno：121710001 Fan 17 partno：520110482 House(Up and Down Cover) 18 partno：234610003 Tapping Screw ST4*16 89 partno：231110002 Tapping Screw ST4*35 410 partno：234310003 Screw ST5*35 211 partno：510110122 Stator 112 partno：521610009 Insulation Ring 113 partno：250110026 Bearing 608-2RS 114 partno：140810014 Bearing Seat 115 partno：520110481 Housing (including Handle Cover) 116 partno：141710001 Lock Cap 117 partno：141310004 Switch Cover 118 partno：410110050 Switch 119 partno：621911846 Nameplate 120 partno：231710001 Set Screw M5*8 221 partno：317610001 Dust Cover 122 partno：234110067 Screw M5*12 223 partno：250110027 Bearing 629-2RS 124 partno：510210342 Armature 125 partno：440210001 Capacity 0.22uF-2TH 126 partno：450110004 Terminal(Blue) 427 partno：233610016 Screw with washer ST4*16 228 partno：522010011 Strain Relief (Plastic) 129 partno：140310002 Power Cable Jacket 130 partno：430220013 Brush Holder (including Brush Cover) 131 partno：430110019 Carbon Brush 132 partno：420110093 Power Cable 2*0.75*2.7YZW 133 partno：630510024 Dust Bag 134 partno：524310002 Fastening Ring(Dust Bag) 1
