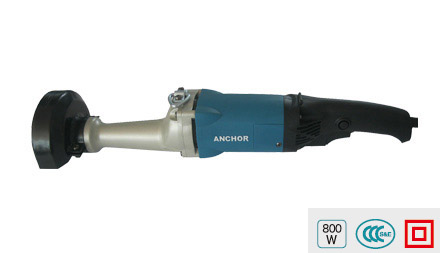

Product Name：Straight Grinder
 | Model S1S-TM01-125 Rated Voltage(V～) 220v
Rated Frequency(Hz) 50Hz
Max.Wheel Diameter(mm) Φ125
Hole Diameter of Wheel(mm) Φ20
Rated Power Input(W) 800
Rated Speed(r/min) 5300
Net.Weight (kg) 4.2 Order No S2 Mill-cut quickly  |
Performance characteristics

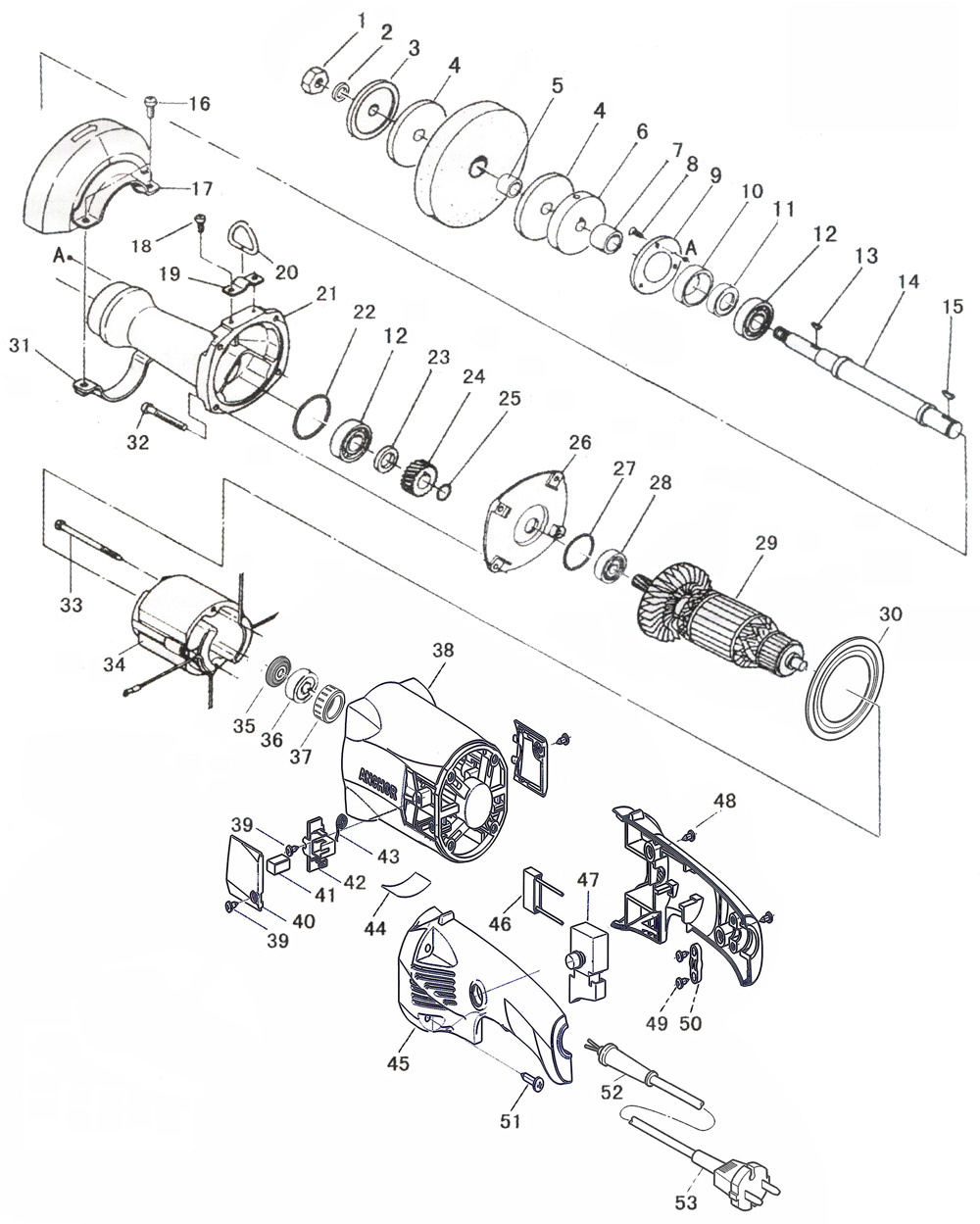

1 partno：220110002 Hex Nut M14 12 partno：240210006 Spring Washer 13 partno：323710011 Clamp Nut 14 partno：323710011 Clamp Nut 25 partno：521010002 Distance Ring 16 partno：323810014 Clamp Flange 17 partno：321210003 Bearing Sleeve 22.9*17*16.5 18 partno：233310009 Sunk Screw M4*14 39 partno：311510036 Cover(3 holes)54*23.6*3.5 110 partno：320610013 Distance Ring 34.8*28.5*11 111 partno：121110017 Wool Pad 28.5*23*11 112 partno：250110017 Bearing 6003-DDW 213 partno：240510002 Woodruff Key 114 partno：320210033 Output Shaft 115 partno：240510004 Woodruff Key 4*13 116 partno：230110001 Screw M6*16 217 partno：311210031 Wheel Guard 118 partno：230810004 Sphere Head Screw M5*16 219 partno：311610001 Belt Seat 120 partno：313910001 Belt Buckle 121 partno：530110155 Gear Case 122 partno：140110012 O Ring 35*2 123 partno：320610008 Distance Ring 23*17*7 124 partno：320110023 Gear 125 partno：240610008 Circlip for Shaft 17 126 partno：530210085 Middle Cover 127 partno：140110023 O Ring 32*2 128 partno：250110020 Bearing 6201-DDW 129 partno：510210377 Armature 130 partno：520310025 Blinker 131 partno：311410005 Hoop 132 partno：234110029 Screw ST5*45 433 partno：234110031 Screw ST4*20 234 partno：510110135 Stator 135 partno：521610026 Insulation Ring 136 partno：250110125 Bearing 608-2Z 137 partno：140810014 Bearing Seat 138 partno：520110454 Housing 139 partno：234110033 Screw ST3*10 440 partno：521910014 Brush Cover 141 partno：430110012 Carbon Brush 142 partno：430210029 Brush holder 143 partno：340420010 Coil Spring 4*0.3*4 144 partno：621911829 Nameplate 145 partno：520210007 Handle 146 partno：440210002 Capacity 0.33uF-2TH 147 partno：410110057 Switch 148 partno：234710004 Screw with washer ST4*18 249 partno：233610016 Screw with washer ST4*16 150 partno：522010011 Strain Relief (Plastic) 151 partno：233610025 Screw with Washer ST5*24 452 partno：140310002 Power Cable Jacket 153 partno：420110068 Power Cable 2*1*2.7YZW 1
