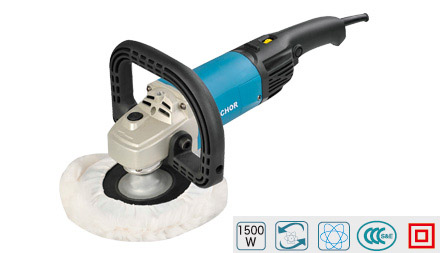

Product Name:Polisher
Model
S1P-TM01-180
Rated Voltage(V~)
220v
Rated Frequency(Hz)
50Hz
Rated Power Input(W)
1500
Rated Speed(r/min)
600-4500
size(mm)
Φ180
Net.Weight (kg)
3.4
Order No
P1
Mill-cut quickly
Performance characteristics

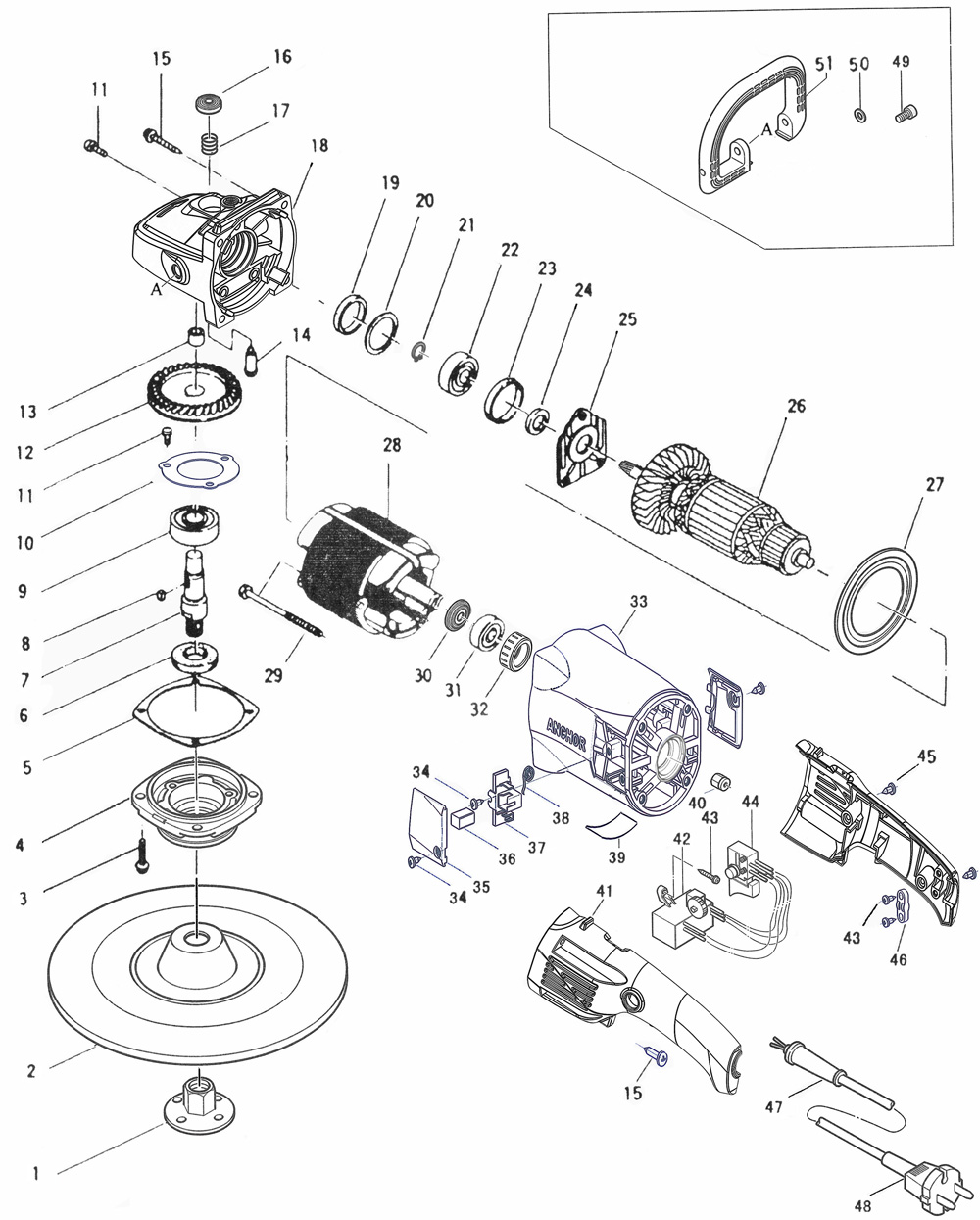

1    partno:323710015    Clamp Nut    12    partno:142610001    Polishing Disc    13    partno:233810013    Screw M5*14    44    partno:530310163    Gear Case    15    partno:142310002    Seal Paper Pad    16    partno:121110008    Wool Pad22*14*4    17    partno:320210041    Output Shaft    18    partno:240510003    Semi-circle key 3*13    19    partno:250110021    Bearing 6202-DDW    110    partno:311510011    Cover (3 holes 47*28*2.5)    111    partno:233810014    Screw M4*10    612    partno:320110111    Big Gear    113    partno:250110021    Bearing 6202-DDW    114    partno:320710013    Lock Pin    115    partno:234110021    Screw ST5*24    816    partno:522410009    Pin Cap    117    partno:340510018    Spring for lock pin 10*14*0.8*5    118    partno:532410135    Gear Case    119    partno:141610009    Shockproof Pillar 27*24*3.5    120    partno:240110015    Washer 30*24.5*0.4    121    partno:240610004    Circlip for Shaft 10    122    partno:250110019    Bearing 6200-DDW    123    partno:140110036    Seal Ring 33*30*4    124    partno:121110009    Wool Pad 27*20*4    125    partno:311510045    Cover    126    partno:510210361    Armature    127    partno:520310025    Blinker    128    partno:510110136    Stator    129    partno:234110031    Screw ST4*20    230    partno:521610026    Insulation Ring    131    partno:250110125    Bearing 608-2Z    132    partno:140810014    Bearing Seat    133    partno:520110557    House    134    partno:234110033    Screw ST3*10    435    partno:521910014    Brush Cover    136    partno:430110012    Carbon Brush    137    partno:430210029    Brush holder    138    partno:340420010    Coil Spring 4*0.3*4    139    partno:621911851    Nameplate    140    partno:440110005    Magnet Ring    141    partno:520210011    Handle    142    partno:410110066    Switch Speed Controller    143    partno:233610016    Screw with washer ST4*16    444    partno:410110065    Switch    145    partno:234710004    Screw with washer ST4*18    246    partno:522010011    Strain Relief (Plastic)    147    partno:140310002    Power Cable Jacket    148    partno:420110068    Power Cable 2*1*2.7YZW    149    partno:232810002    Hex screw M10*20    250    partno:240110001    M10 Flat Washer 20.8*10.6*1.9    251    partno:520810004    Auxilliary Handle    152    partno:704041010    Socket Head Wrench    153    partno:311910010    Wrench    154    partno:630510022    Felt Wheel    1
